Typical Commercial / Business Camera Placement

Cameras are typically located at the corners of the building. Cameras are used to secure parking lots, lobbies, docks, emergency exits, first floor glass windows, break areas, halls, laboratories, inside warehouses, shops, entry gates and electrical / data rooms.

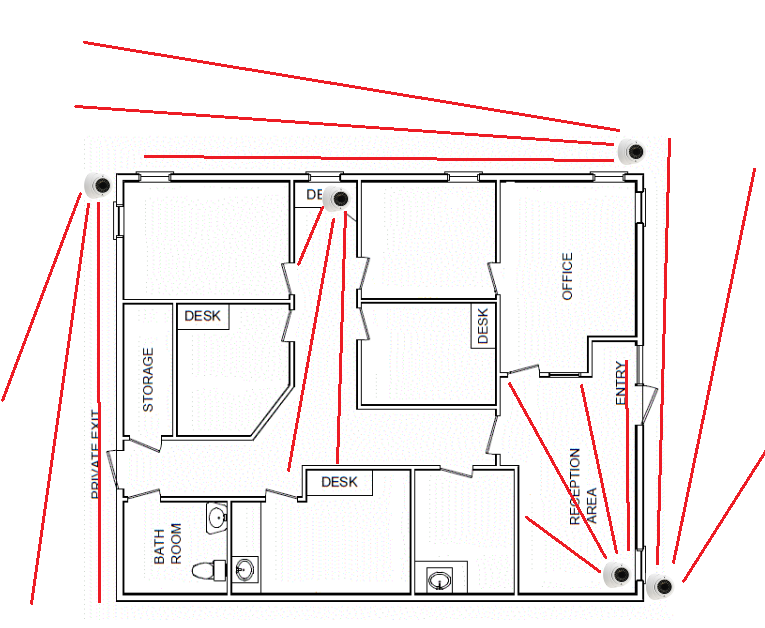

Trap surveillance is very effective in large buildings. Cameras are strategically placed so a person cannot move from one area of the building to another without being seen and recorded. This design reduces the number of cameras needed to effectively protect the facility. The hall camera shown in the diagram below is a good example of trap protection.


Business Camera Placement

Fore more detail, we would recommend checking out our Business Case Studies to understand specific applications and expert system design.



Car Dealership

Business security camera locations - how to 1

Outdoor RV & Boat Storage

Business security camera locations - how to 2

School

Business security camera locations - how to 3

Manufacturing Facility

Business security camera locations - how to 4

Hydroelectric Dam

Business security camera locations - how to 5

Machine Shop

Business security camera locations - how to 6

Precision Manufacturing Facility

Business security camera locations - how to 7

Restaurant

Business security camera locations - how to 11

Office Building

Business security camera locations - how to 8

Apartment Complex

Business security camera locations - how to 9

Manufacturing Plant

Business security camera locations - how to 10

Transmission Shop

Business security camera locations - how to 12

Gun Store

Business security camera locations - how to 13

Wholesale Supply Store

Business security camera locations - how to 14

Convenience Store

Business security camera locations - how to 15

Car Wash

Business security camera locations - how to 16

Storage Facility

Hydroelectric Power Plant

Business security camera locations - how to 17



So where should you locate your security cameras?

Below are a few of the most common viewing patterns. Each has benefits and possibly some draw backs. Your application will dictate which design is most effective.



Mid Wall Pattern

Mounting a camera mid wall and adjusting its view perpendicular to the wall. This location can be useful for certain applications but is seldom used by security professionals, simply because it creates a blind spot on each side of the camera. A 3.6mm lens provides the widest viewing angle without distorting the image. There are 180 degree cameras on the market but they distort the video so badly that the video is useless at distance. We do not recommend using any lens wider than a 2.8mm, which provides a viewing angle of 110 degrees. Still, with such a wide viewing angle, do not expect great clarity beyond 40 feet (there is a warping or bubble effect past 40 feet). Because of this, a 2.8mm lens should be used for up close applications - such as a porch or any location where you desire a very wide angle view but do not require great detail at distance.


home security camera placement diagram



Back to Back Pattern

Place two cameras back to back mid wall. This design eliminates the blind spots that can occur when using one camera mid wall.


home security camera placement diagram



Secret Service Pattern

Two cameras are installed on the same wall, separated by 15-20 feet and aimed towards each other. Basically, the cameras are watching each other’s back so that neither camera can be disabled without the perpetrator being seen. This design works well with both fixed view and zoom lens cameras.


home security camera placement diagram



Corner to Corner

This design is the most common and provides several benefits. It makes the most of each camera's viewing capability and covers 100% of the perimeter. When the cameras are placed as the diagram below indicates, all blind spots are eliminated and the cameras cannot be vandalized without the perpetrator being recorded by another camera.


home security camera placement diagram



Inside Corner

This pattern is simple and very effective. Because a 3.6mm lens provides a 90 degree field of view, it is perfect for an inside corner. When using this method, the camera cannot be vandalized and the corner is covered wall to wall.


home security camera placement diagram
